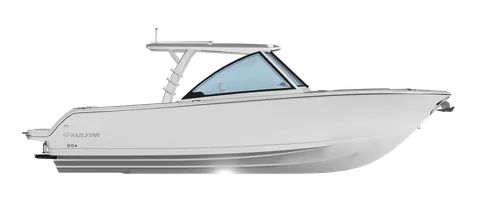

316 DC

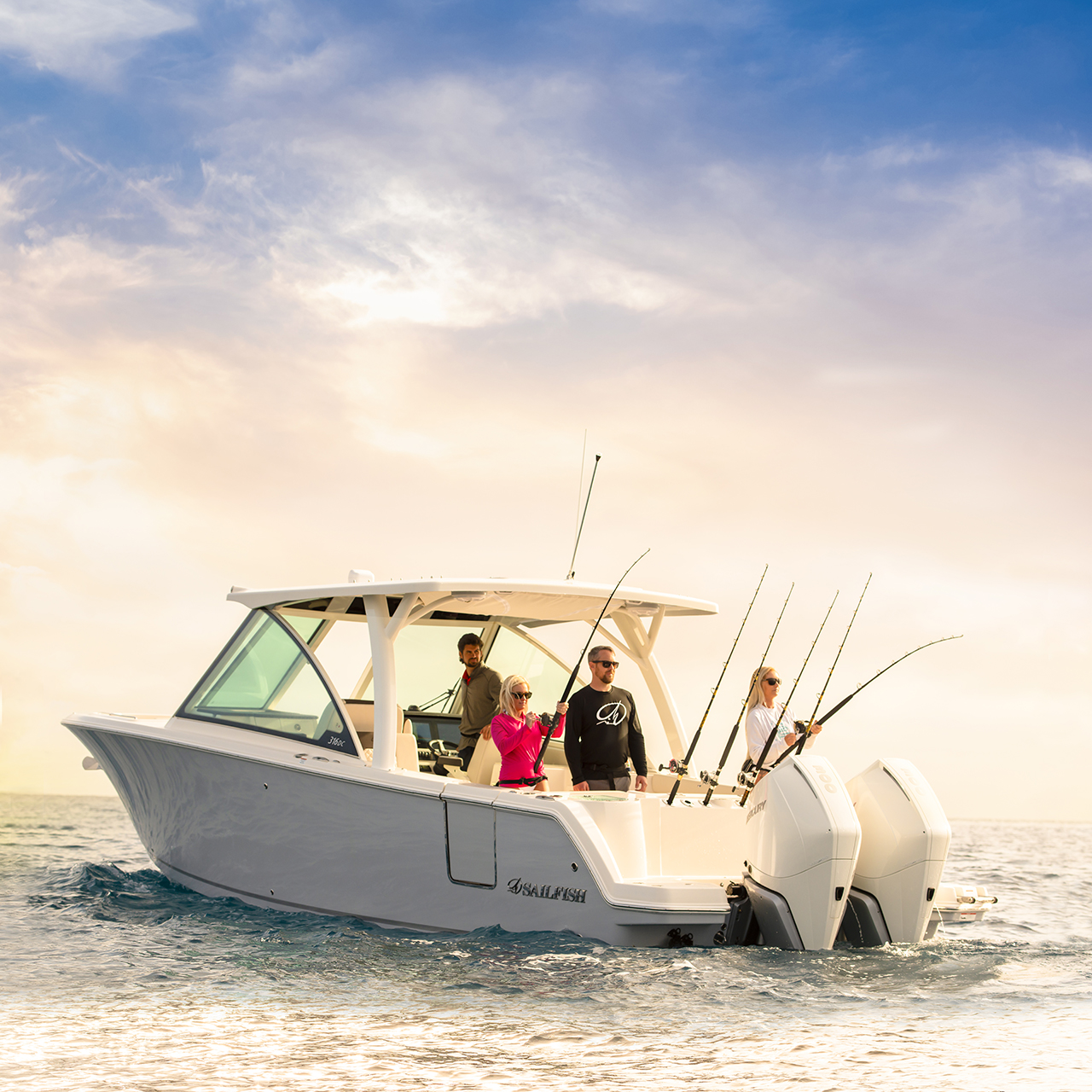

The new 316 Dual Console is a versatile family fishing boat that checks all the boxes: comfort, safety, quality and reliability. Well-equipped for a range of activities, the 316 DC offers a roomy and social layout with convertible seating and loads of storage space. And when you want a fishing battlewagon, the 316 doesn’t disappoint — it has all the features you need for angling success
-
LOA - Hull Only
30' 6" | 9.30 m
-
Length Rigged
32' 6" | 9.91 m
-
Beam
9' 9" | 2.97 m
-
Bridge Clearance with Hard Top
8' 6" | 2.59 m
-
Cockpit Depth Rear
30" | 76.2 cm
-
Cockpit Depth Bow
38" | 96.52 cm
-
Dead Rise (Multiangle)
22° - 24°
-
Fresh Water
19 gal | 72 l
-
Approx. Rigged Weight
11,315 lbs. | 5,132.40 kg
-
Draft (Hull Only)
22" | 55.88 cm
-
Fuel Capacity
265 gal | 1167 l
Battery
Capacity
3
Rod Holders
(Standard)
14
Person
Capacity
Yacht Certified
STANDARD FEATURES & OPTIONS
Features
Options
Boat
Bow
Electrical
Fishing
Hardware
Head
Helm
Plumbing
Seating
Storage
Backing Plates for Radar and VHF Mounts in Hard Top
Boarding Ladder (4-Step w/ Grab Handle)
Built-In Rigging Tubes (From Bilge to Helm w/ Pull Tapes)
Carbon Fiber & Kevlar® Reinforced Deck & Hull
Closed Cell Foam Flotation
Cockpit Bolster Pads
Corian Countertops (Head & Galley)
Exclusive Dot Matrix Non-Skid Flooring
Exclusive VDS Hull Design (Variable Deadrise Stepped Hull)
Fiberglass Hard Top (w/ Integrated Docking/Spreader Lights, Rocket Launchers & PFD Storage)
Fuel Filter / Water Separator

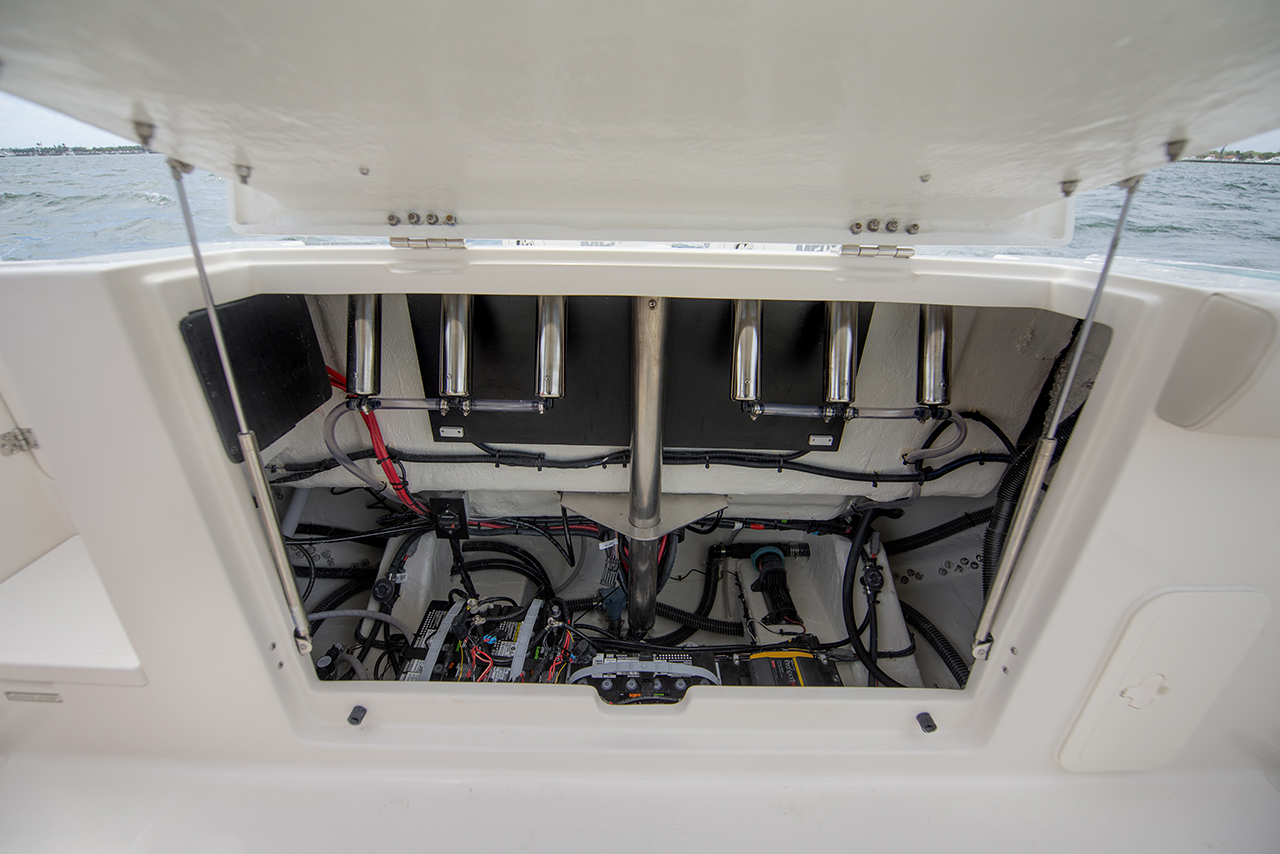

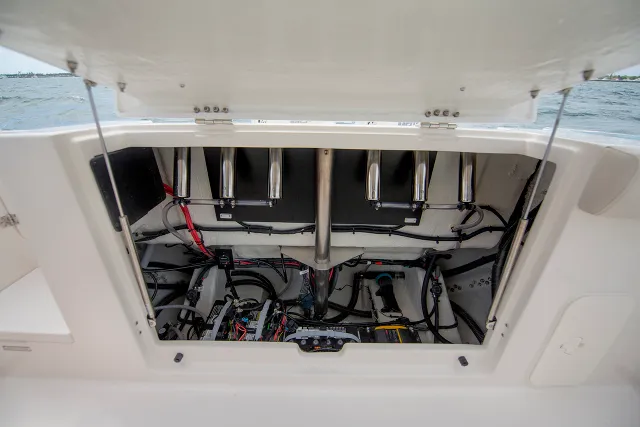

Oversized Bilge Access

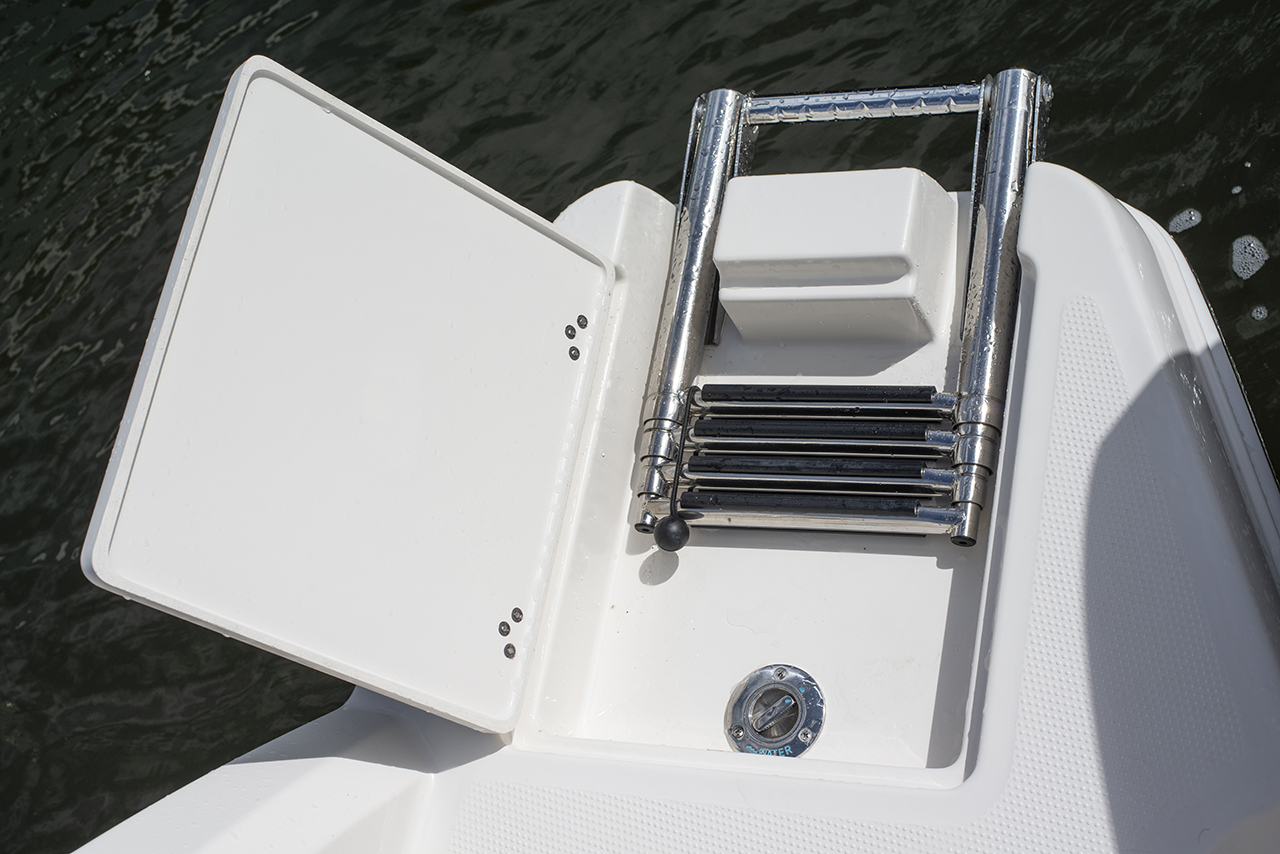

Port Side Dive Door w/ Ladder
Recessed SST Cup Holders (10)
SailTech Composite Full Length Transom
SailTech Foam-Filled Fiberglass Stringer System
Thru Hull Windlass System (w/ Stainless Steel Anchor, 200' of Line and 15' of Chain)
Transom Mounted Tool & Raw Water Washdown Hose Holder
Trim Tabs (Dual Ram, Heavy-Duty, High-Performance w/ Indicators & Auto-Retract Feature)
Walk-Thru Tempered Glass Full Height Windshield w/ Center, Sliding Bow Access Panel
Walk-Thru Transom Door w/ Wave Guard Step
Windshield Wiper (Captain’s Side w/ Freshwater Spray Tank)
Bow Block-Off Door

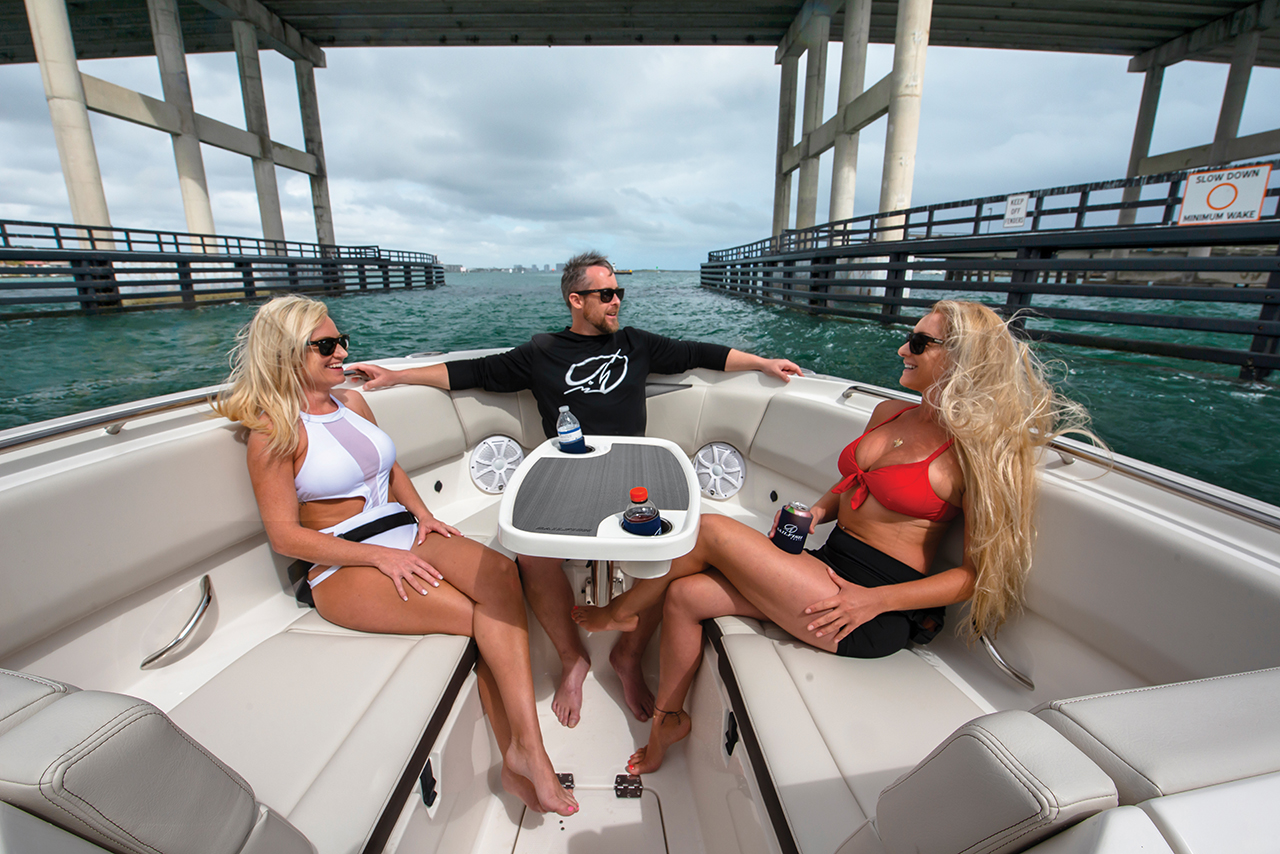

Bow Bottom and Backrest Cushions
Built-In Bow Cooler
Chaise Lounge Seating w/ Fold-Down Armrests
Dual USB Charging Ports (1-Port/Starboard)
Gull Wing Seat for Console & Storage Access(Starboard)
Accessory Switch Panel w/ Circuit Breakers
Compass
Electric Horn
Full Digital Instrumentation
Fully NMEA 2K Compliant
Fusion Stereo System w/ Rockford Fosgate LED Lighted Speakers & 6 Channel Amp
LED Anchor Light
LED Interior Cockpit & Bilge Lighting
LED Navigational Lights (Built Into Hard Top)
VSR Battery Charging System

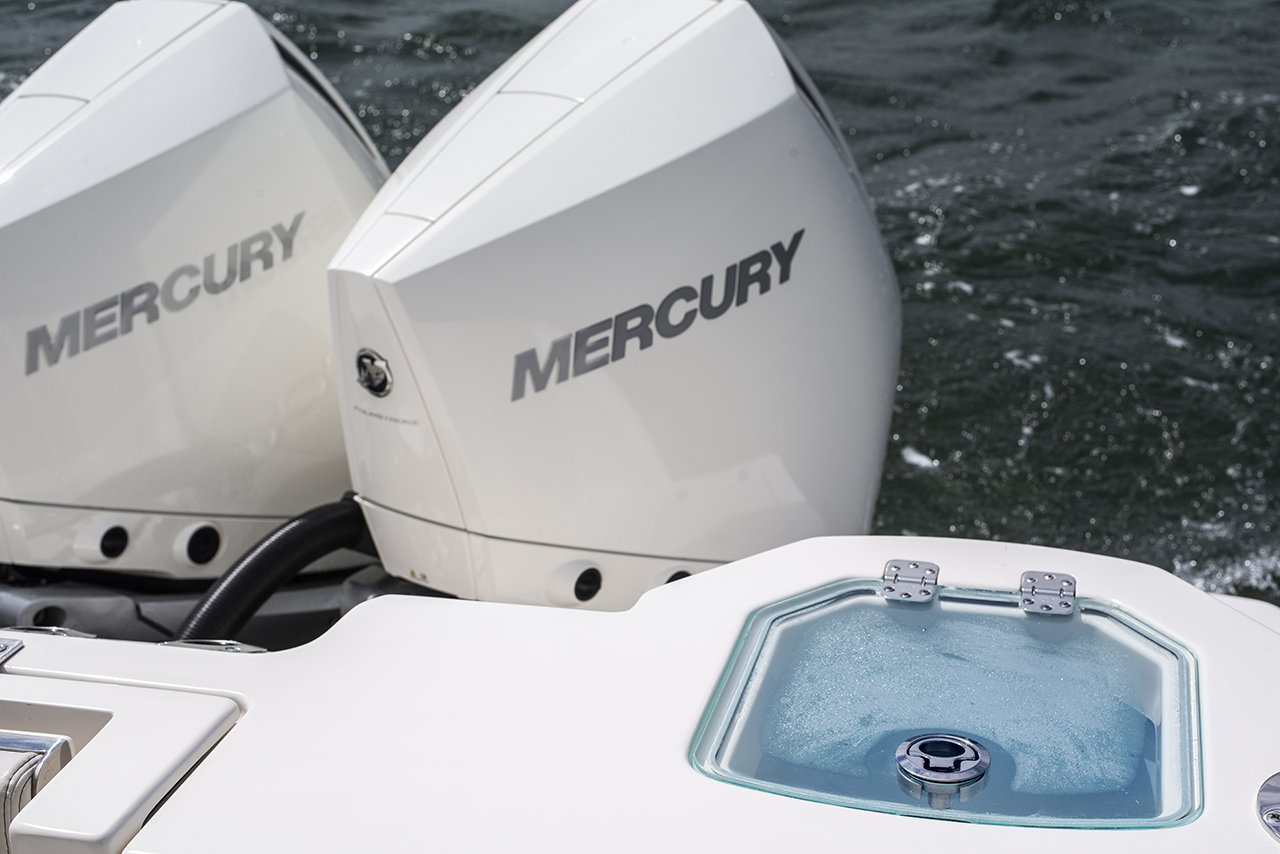

Circulating Baitwell w/ LED Lighting (30-gal. Transom)
In-Floor Fish Boxes (2 - w/ Advanced Vacuum Pump)
Insulated Bow Fish Boxes
SST Rod Holders (2)

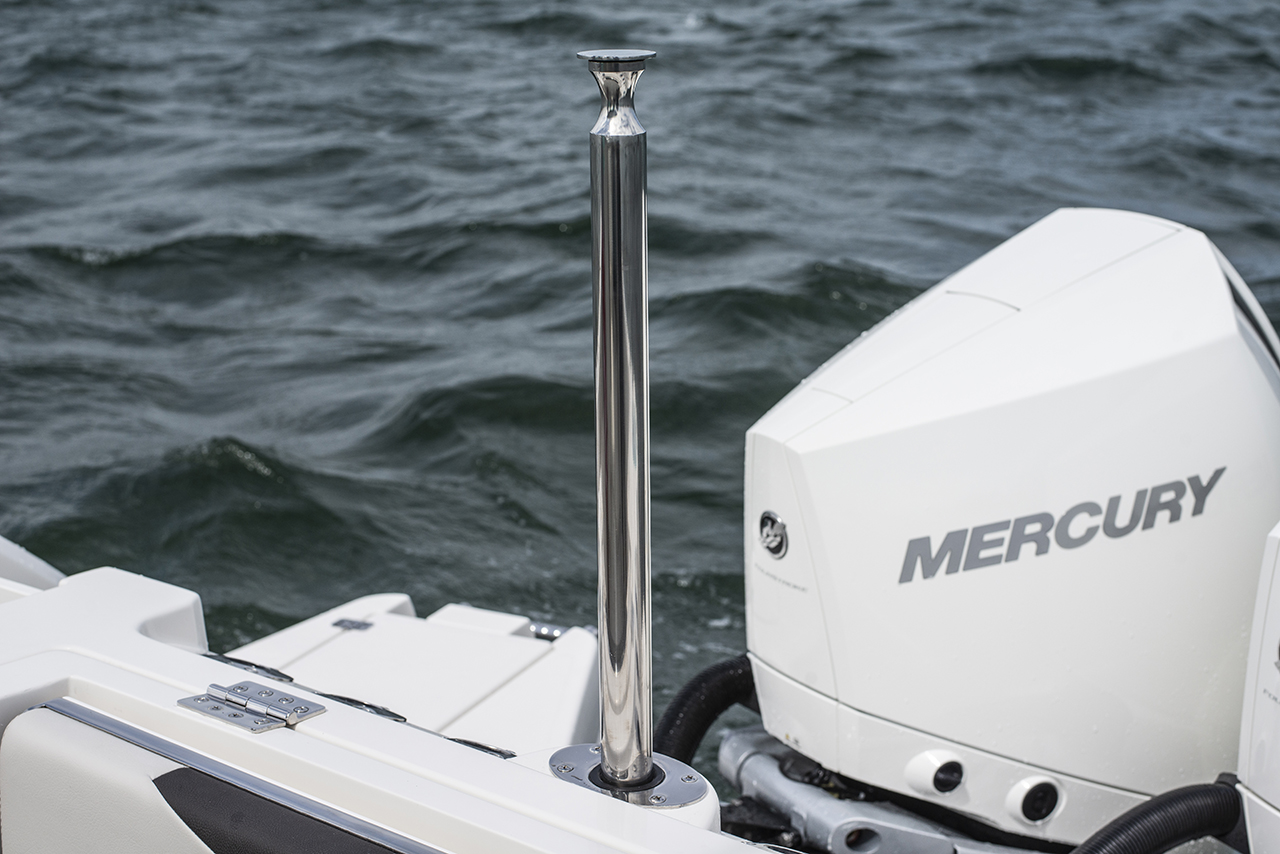

SST Transom Rod Holders
Fender Cleats (4)
Flush Mount Hinges, Latches & Deck Plates
Heavy-Duty SST Bow & Stern Eyes
Heavy-Duty SST Rub Rail
Marine Grade SST Hardware
Sailfish Engraved Transom Plates
SST & Bronze Thru Hull Fittings
SST Flush Mount Pull-Up Cleats (6)
SST Propellers

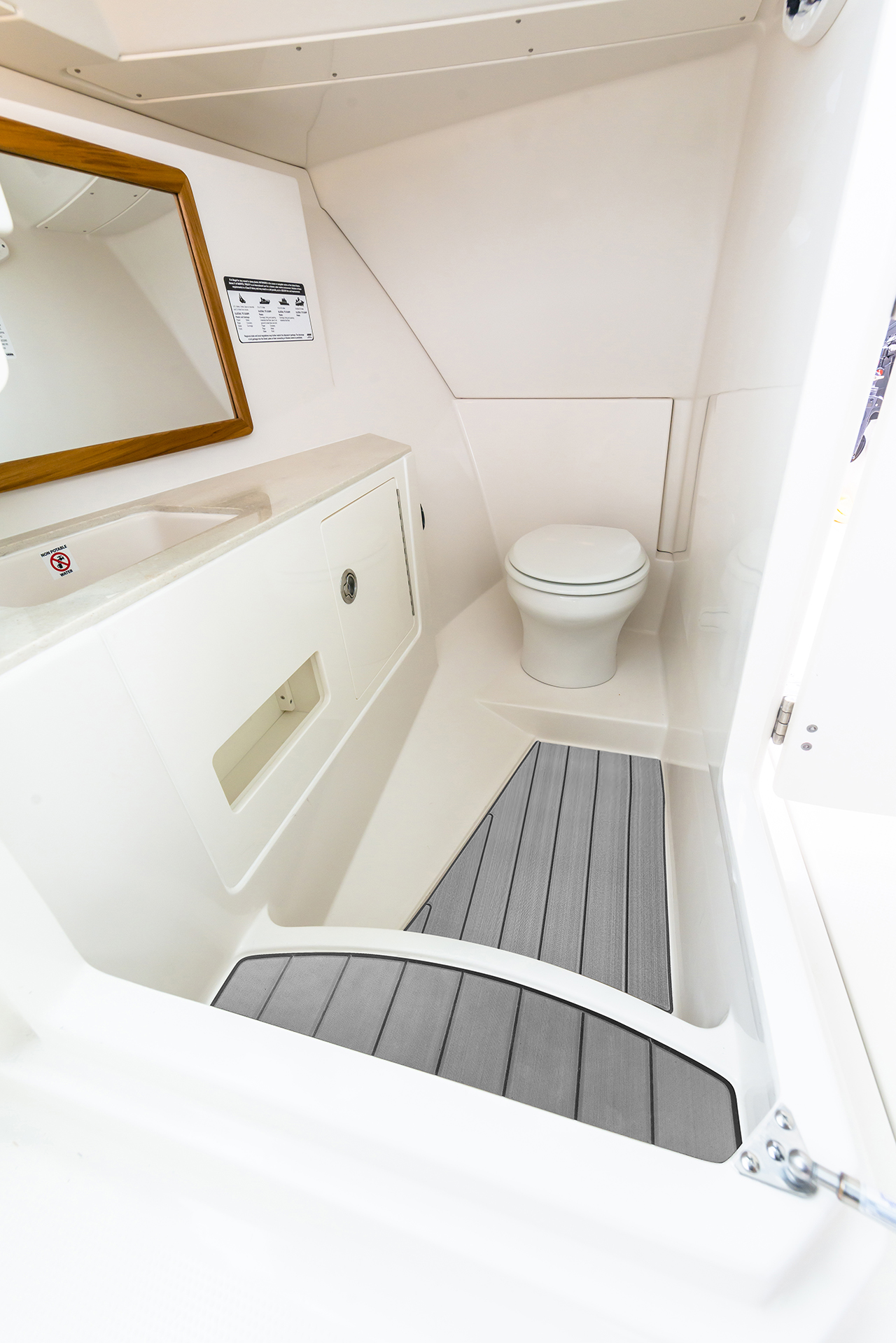

Electric Marine Head (w/ 10-gal. Holding Tank, Overboard Discharge & Deck Pump-Out Fitting)
Finished Fiberglass Head
Frosted Overhead Skylight
Head Compartment Lighting
Lockable Head Door
Marine Deck Flooring (Foam)
Mirror

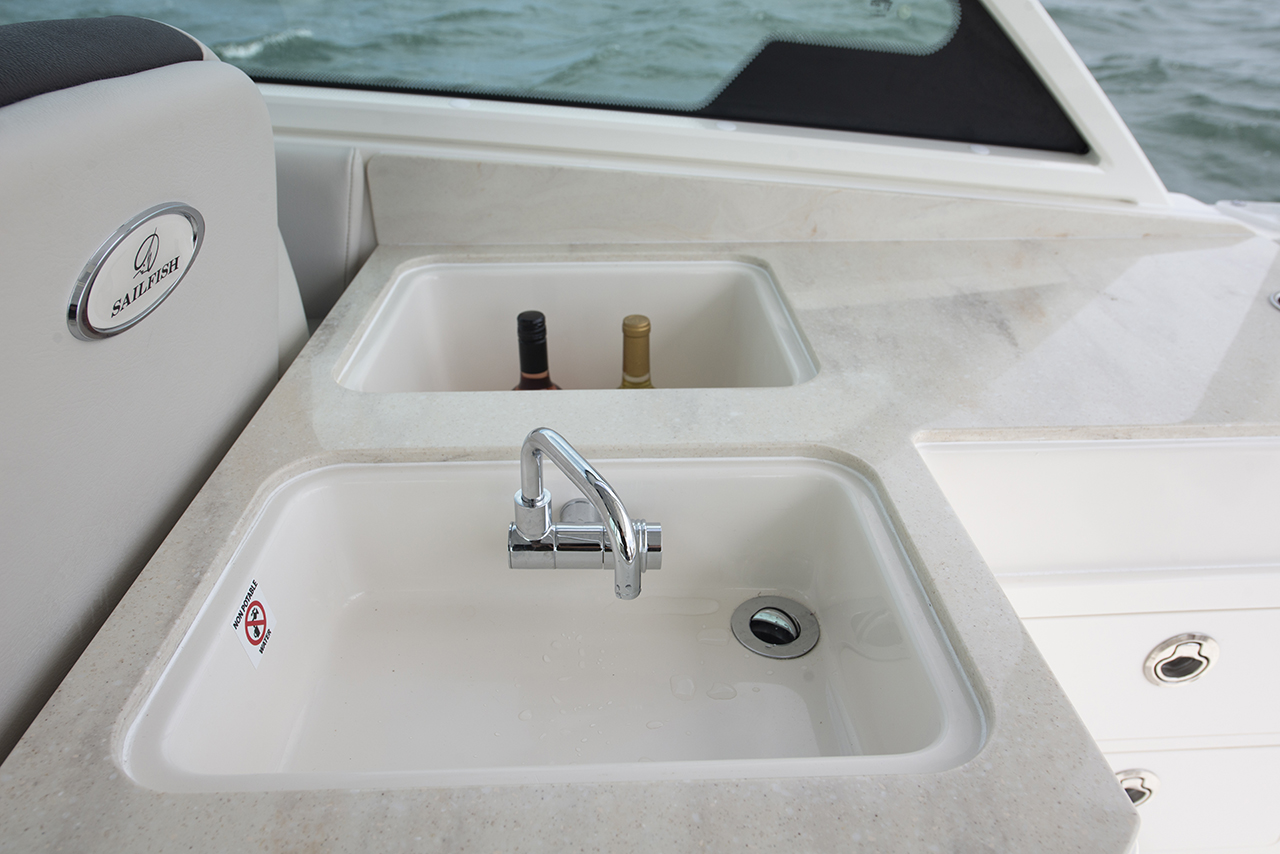

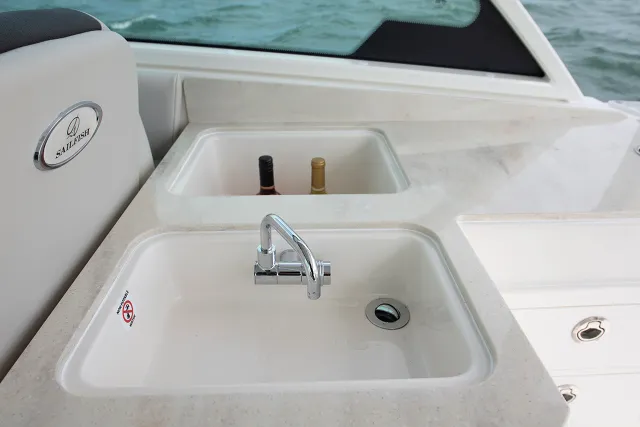

Sink w/ Faucet
SST Port Light
Under Counter Storage Unit
12-Volt DC Accessory Plug
Digital Electric Steering (Mercury 350/400XXL)

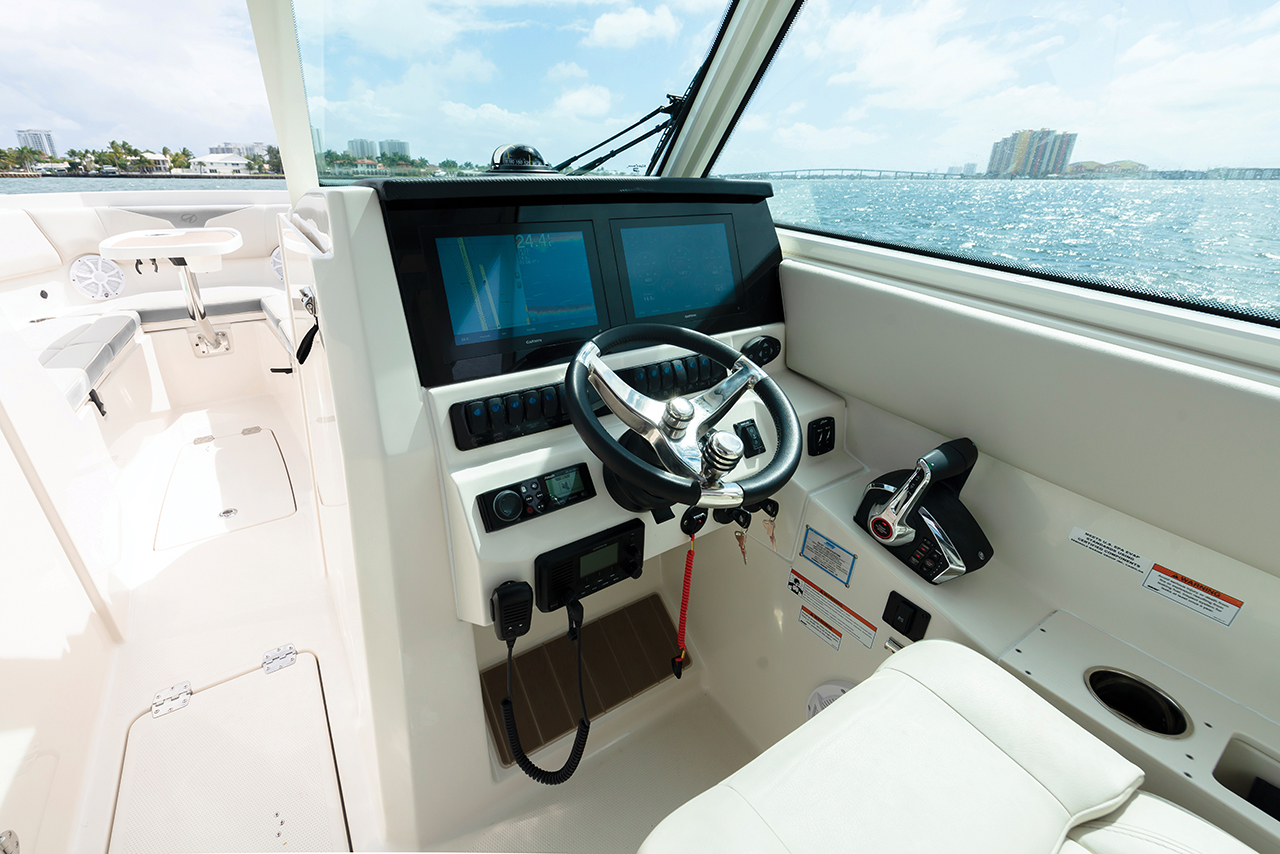

Large Dash Area
Power Assist Steering (Mercury Twin 300XXL & Suzuki)
Tilt SST Steering Wheel w/ Power Knob
Automatic Bilge Pumps (2000 GPH Aft and 800 GPH Forward)
Freshwater Shower (Transom)
Freshwater Tank (19-gal.)
High-Speed Livewell Pickup

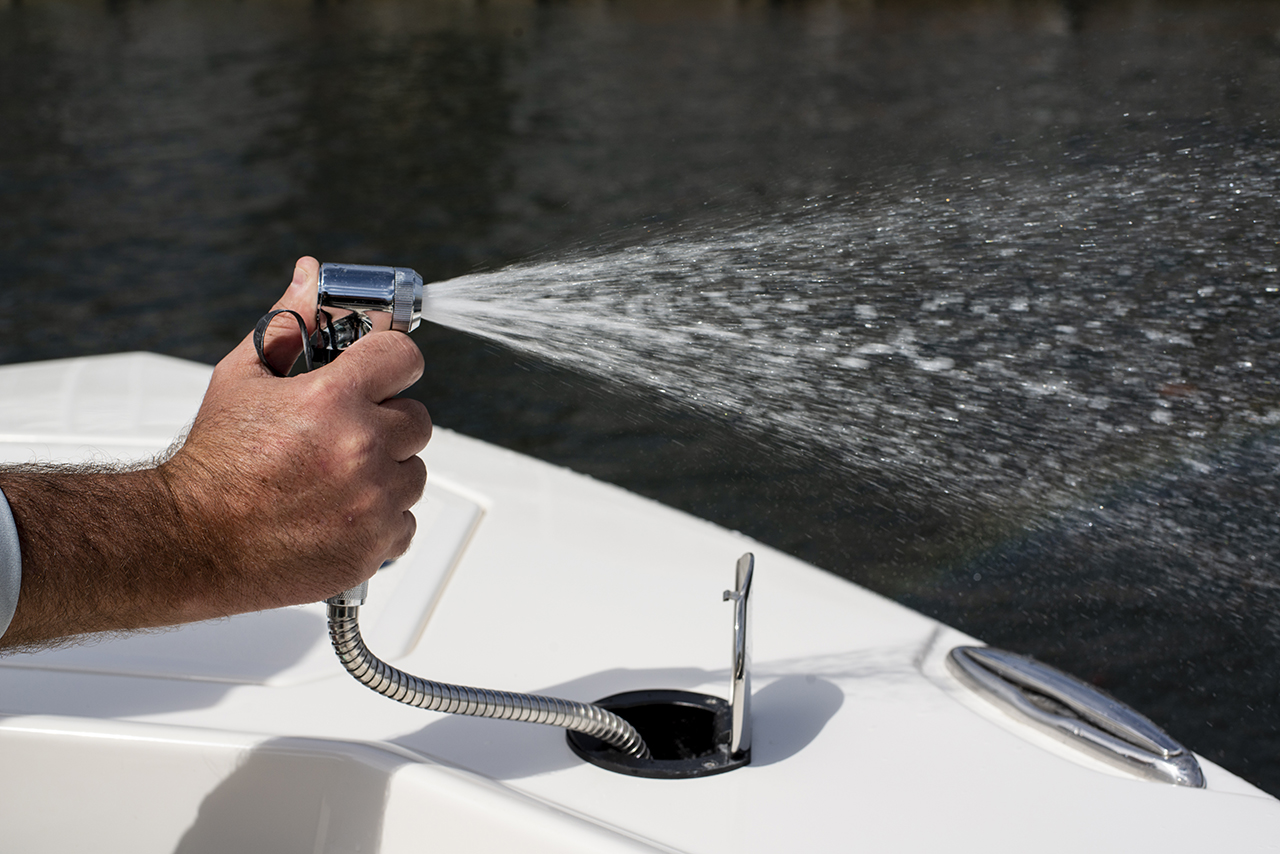

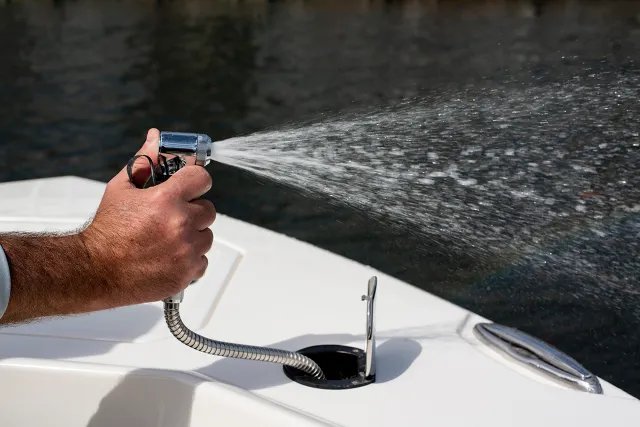

Raw Water Washdown
Self-Bailing Cockpit
Aft Folding Seat (38”)

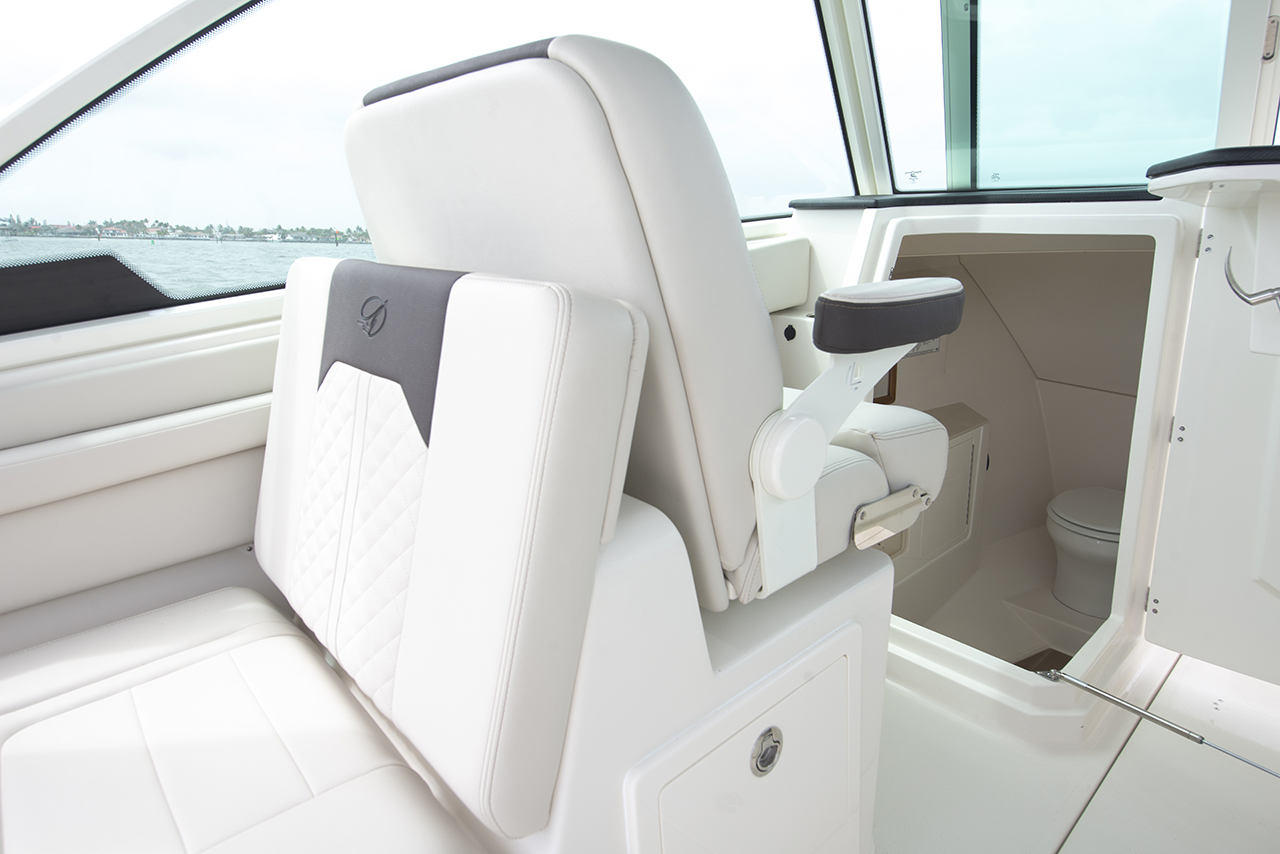

Deluxe Power Captains Chair with Flip-Up Bolster and Armrests
Portside Companion Seat w/ Storage (26"), w/ Dual USB Charging Port

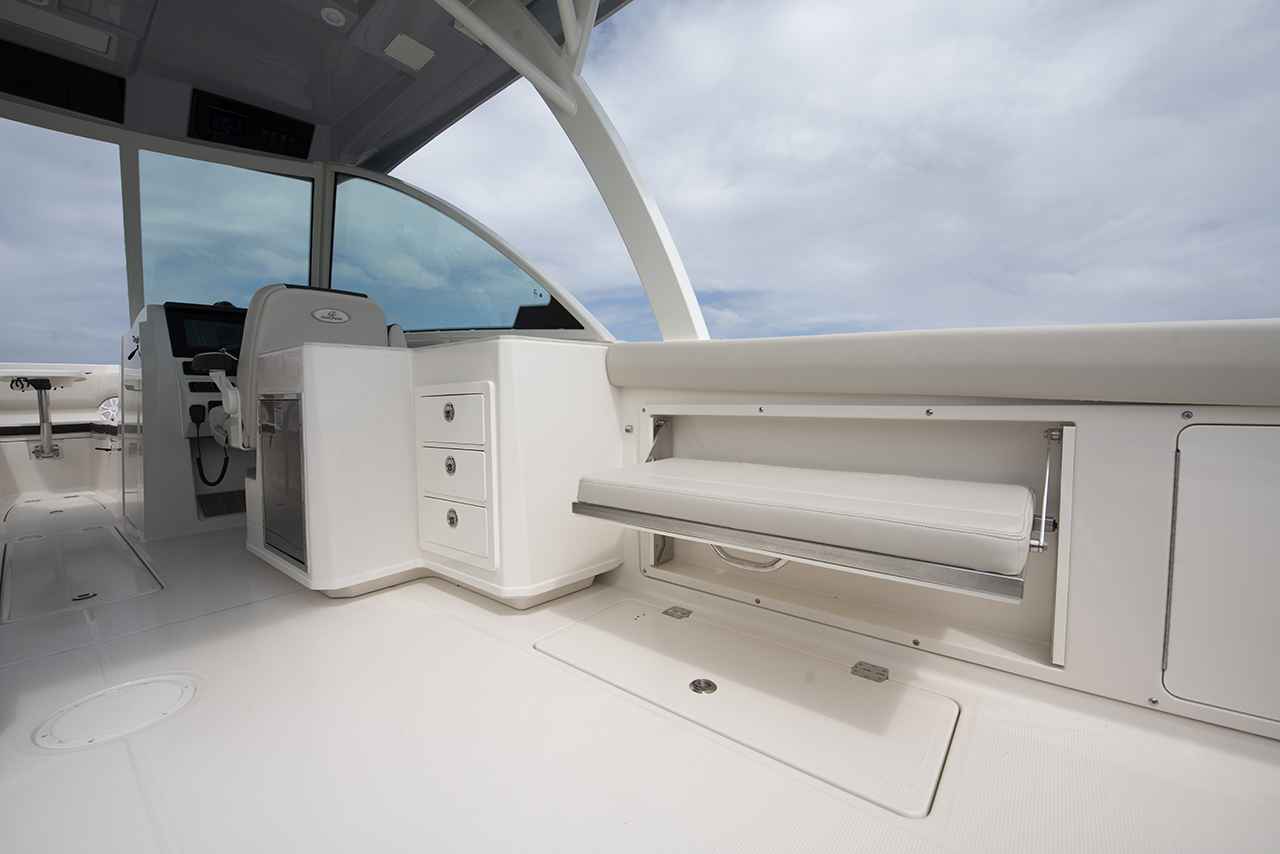

Portside Folding Jump Seat (22")
Rear Facing Bench Seat w/ Storage Drawer & Under Seat Storage Compartment
Rear Facing Starboard Seat w/ Storage

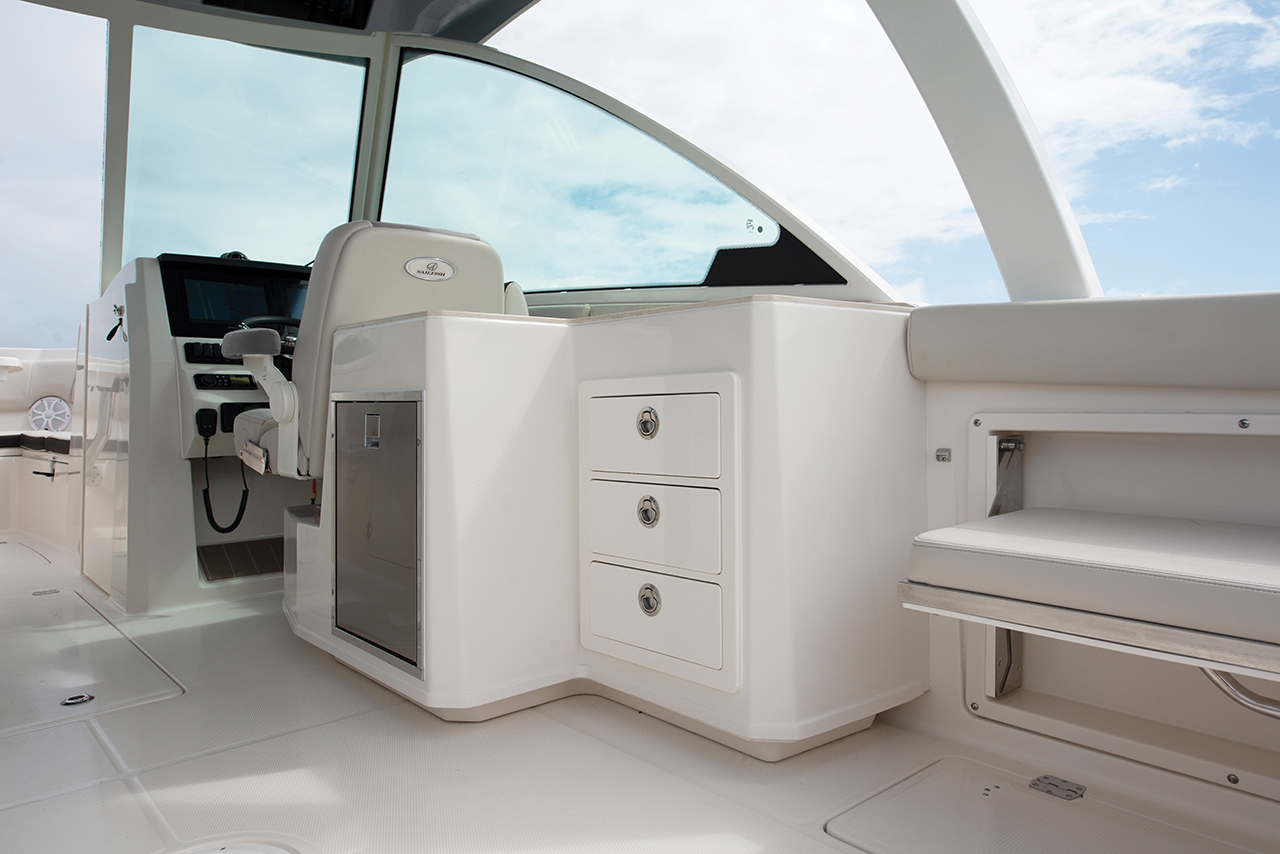

3-Drawer Storage Cabinet
Battery Storage (Bilge Compartment)
Fiberglass Console Storage
In-Floor Ski Locker (Mid-Ship)
In-Floor Storage (Bow)
Passenger Deck Top Glove Box
Starboard Console Storage w/ Bow Access
Engine & Power Packages
Boat Options
Electronics & Sound System
Seating Options
Weather Options
Optional Packages
DOCUMENTATION
Owner’s Manual

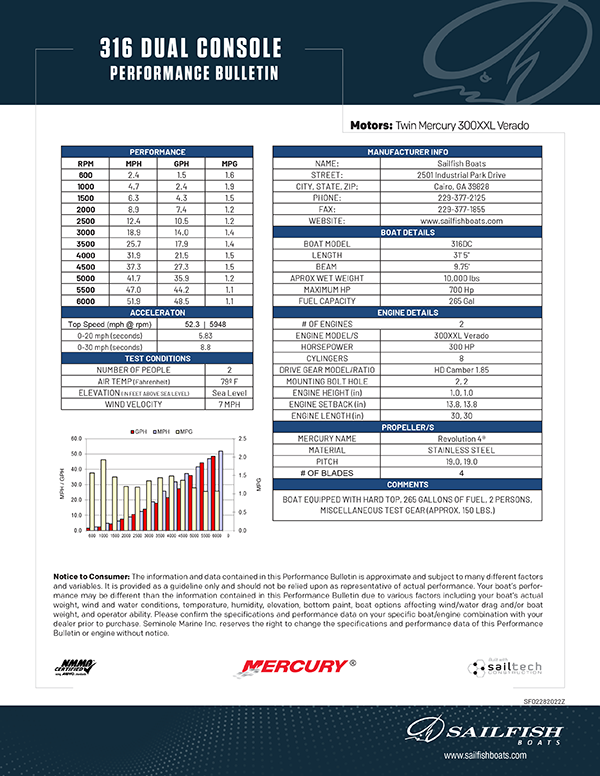

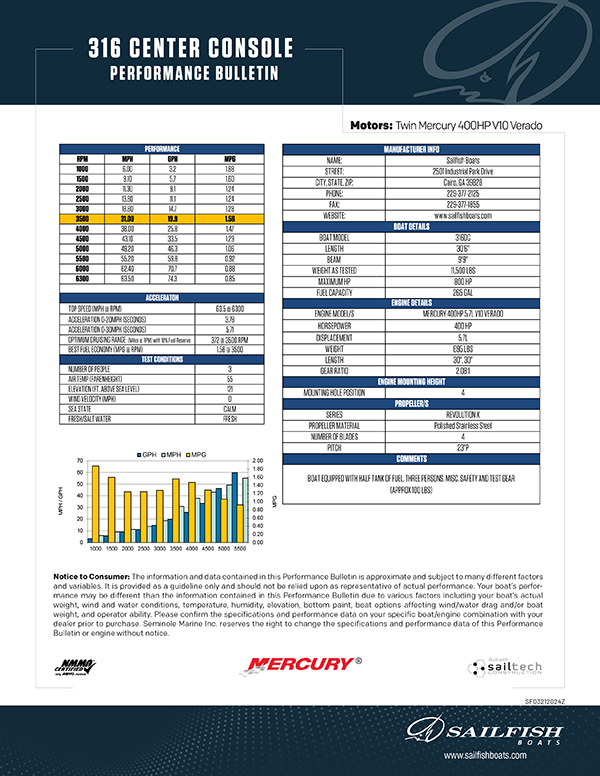

Mercury 300XXL Verado
Mercury 400 V10 Verado
Yamaha F300USB

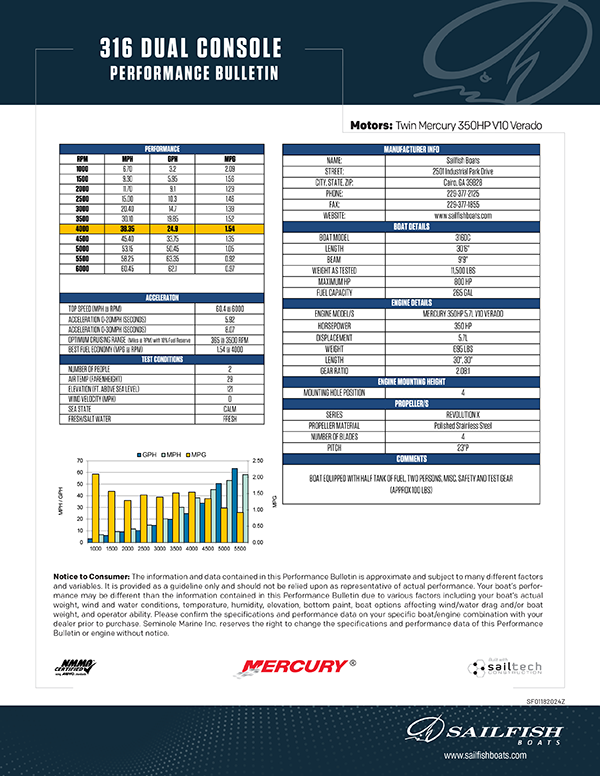

Mercury 350XXL Verado

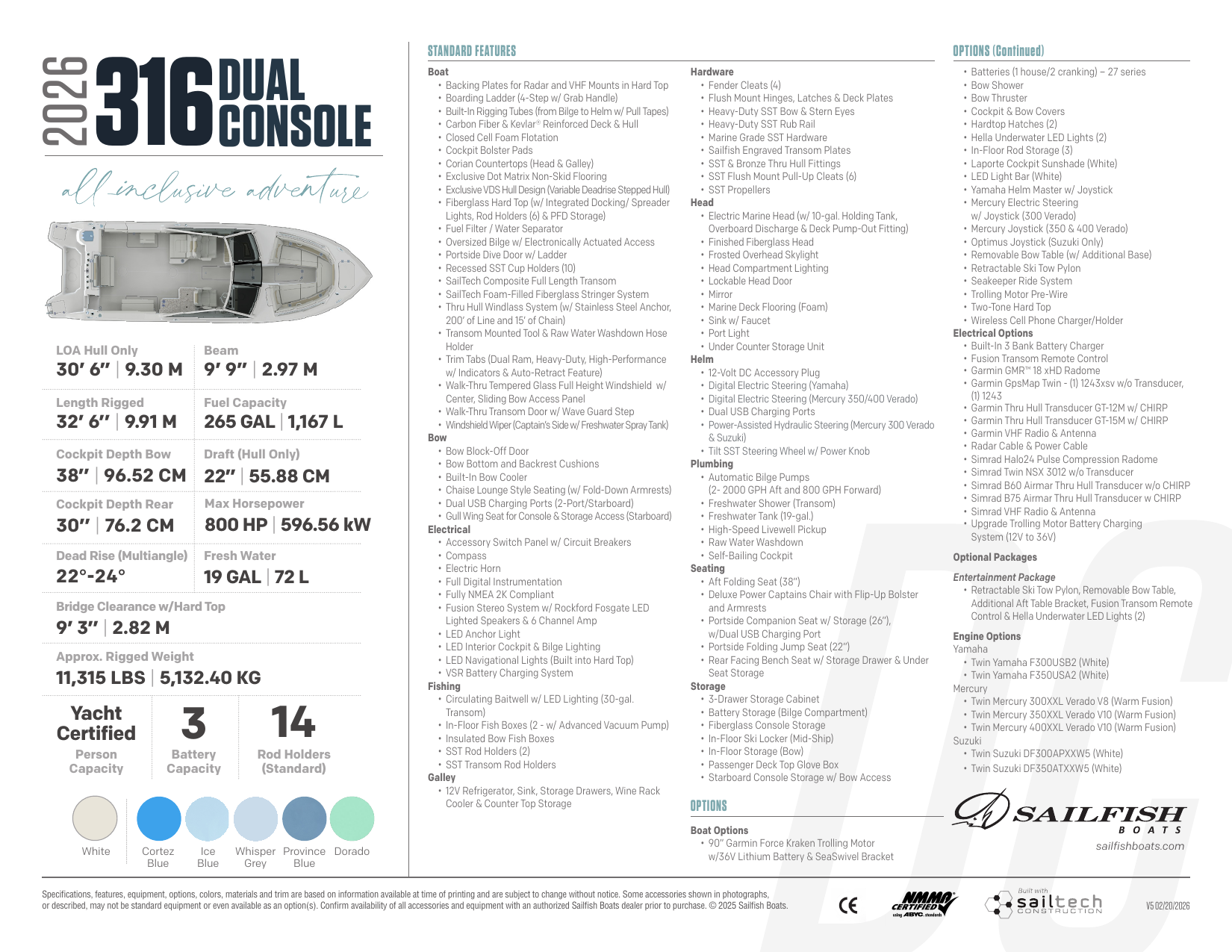

Spec Sheet

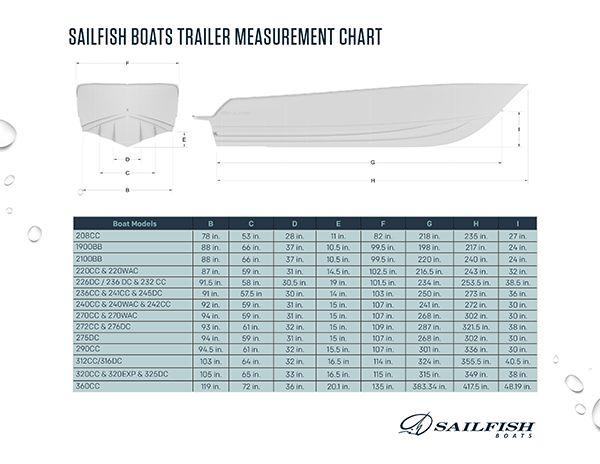

Trailer Specs
Catalog

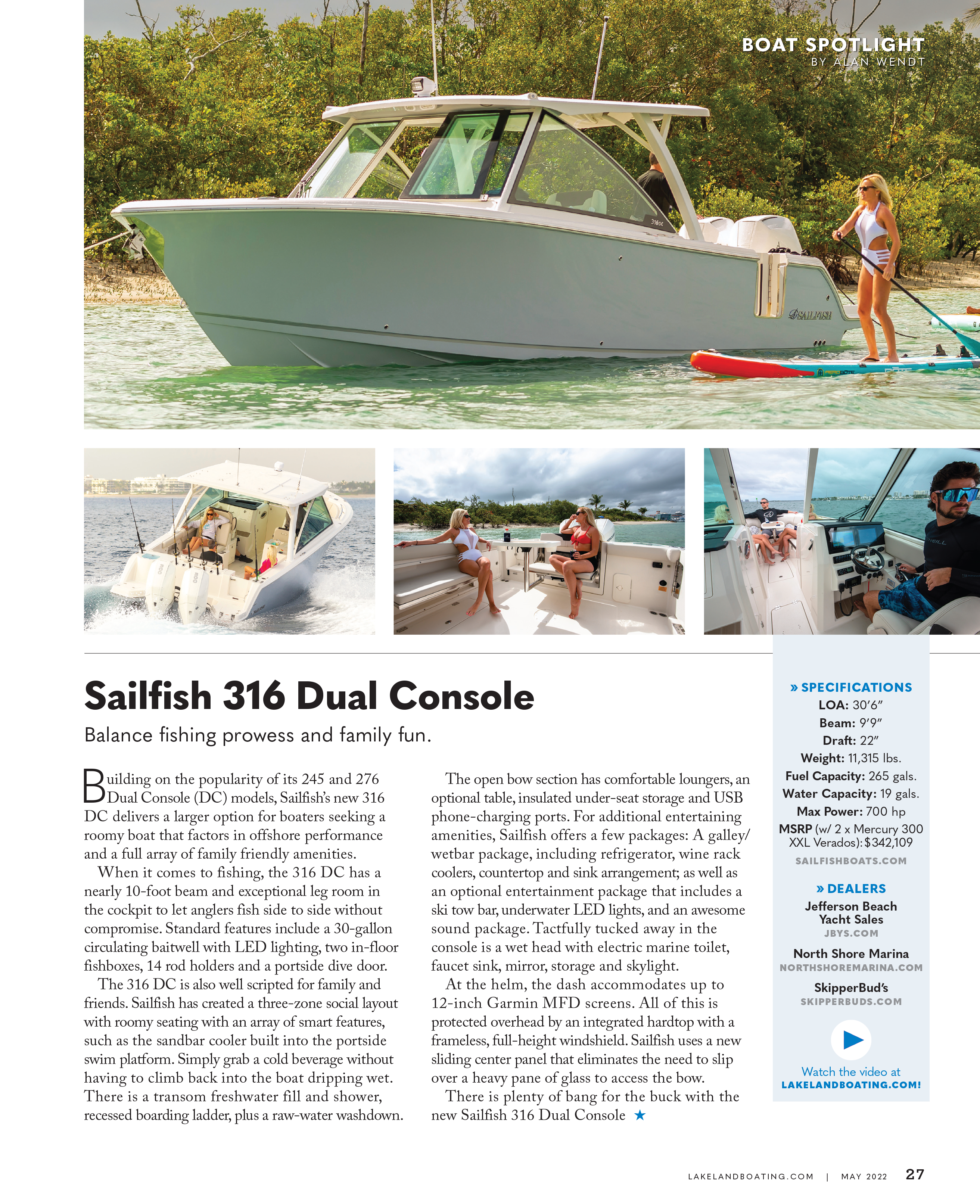

Lakeland Boating Editorial

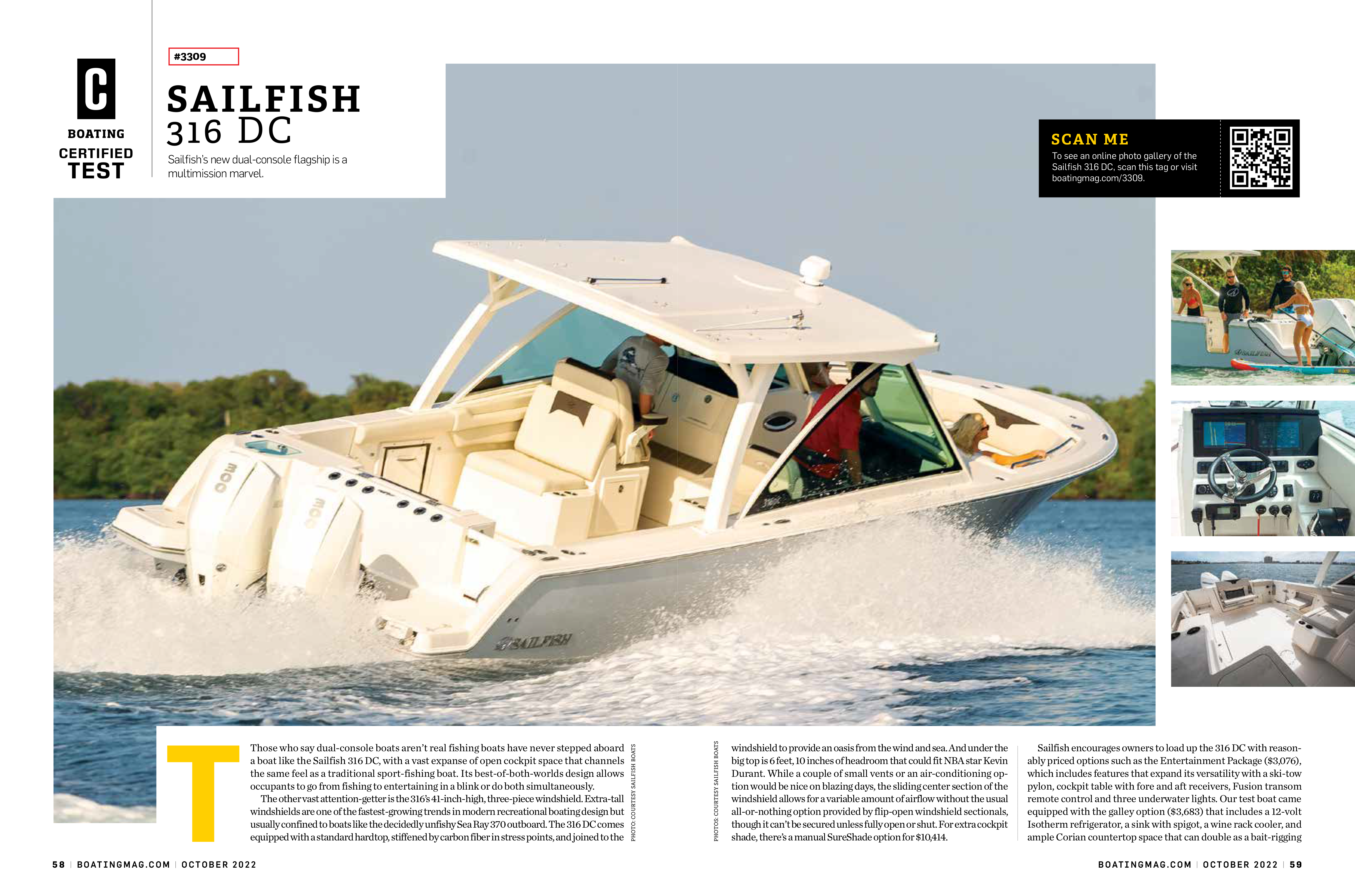

Boating Magazine Review: October 2022

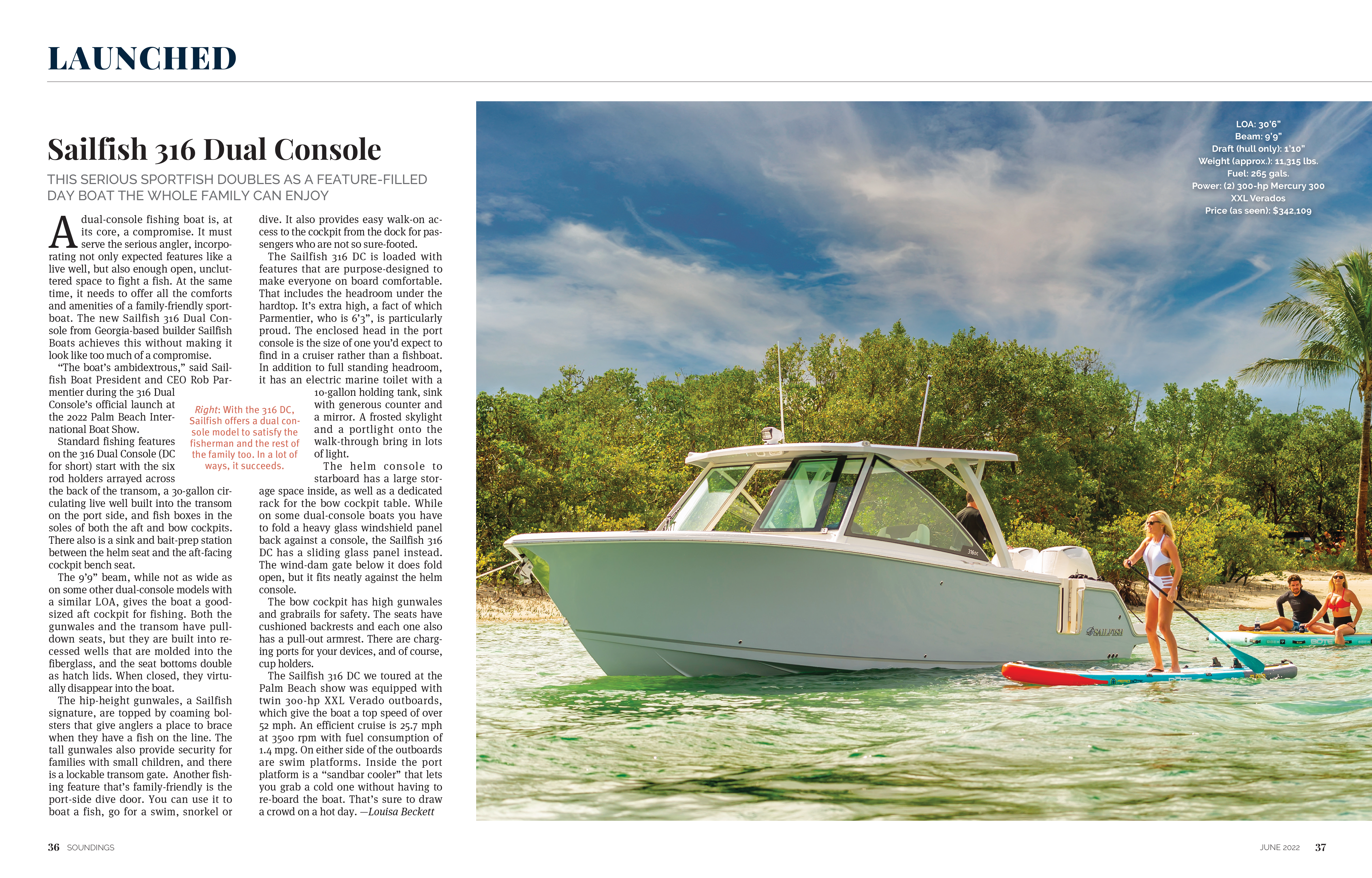

Soundings Editorial: June 2022
ENGINEERING
INNOVATIVE DESIGN, UNCOMPROMISING QUALITY
Today’s Sailfish is the result of over three decades of design and engineering experience. Each of our boats are built using only the best materials and proven manufacturing techniques.
ENGINEERING
THREE HULLS ARE BETTER THAN ONE
Sailfish Boats’ unique Variable Degree Stepped (VDS) Hull features three distinct running surfaces, offering triple the performance benefits of a typical V-hull. Whether idling or slicing through the chop, VDS design ensures a smooth, comfortable and safe ride.
